NZS 11 / AS/NZS 2739

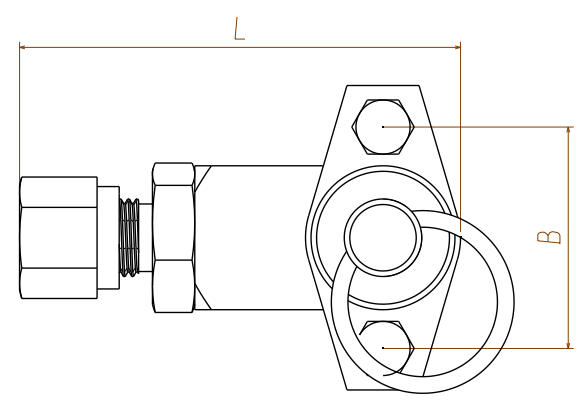

• S304 Filling Nozzle
• Integrated non-return Valve (check-valve)
• OEM approved product range
• ECE R110 approved，follow standards different from ISO 14469、ANSI NGV 1
• Pmax260 Bar
• Temp Range -40℃～+120℃

Side connections：

• Till Size 1/2-20 UNF (suitable for pipe 8 mm OD) double ferrule fitting
• Till Size 3/4-20 UNEF (suitable for pipe 12 mm OD) double ferrule fitti
